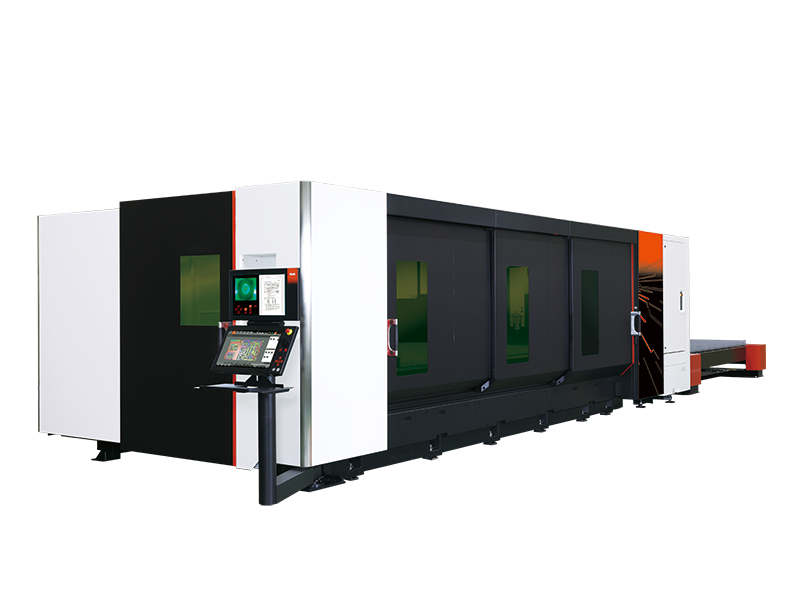

2D fiber laser processing machine achieves high speed and high-quality cutting of various materials and thicknesses
2D fiber laser processing machine achieves high speed and high-quality cutting of various materials and thicknesses
Resonator is available in 3.0 kW, 4.0 kW, 6.0 kW, 10.0 kW, 15.0 kW, and 20.0 kW
New Piptox SmoothLx CNC Control
Increased Accessibility and Ease of Operation

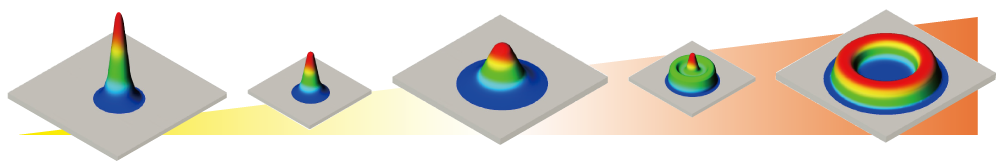

Beam Diameter Control / Variable Beam Mode*
The Beam Diameter Control function automatically adjusts to the optimum beam diameter for each material and thickness. Machines are also equipped with Variable Beam Mode function which controls the divergence angle of the laser beam from the fiber resonator. Together, these two technologies provide faster cutting speed for thin material as well as superior cutting quality for thick material.
When equipped with laser oscillator compatible with Variable Beam Mode
Machine Specifications
| Specification | Values | ||
| Capacity | Maximum Cutting Size Right/Left | 2050 mm / 80.71 in | |
| Maximum Cutting Size Longitudinal | 4120 mm / 162.20 in | ||
| Feed Axes | Travel (X axis) | 4200 mm / 165.35 in | |
| Travel (Y axis) | 2100 mm / 82.68 in | ||
| Travel (Z axis) | 135 mm / 5.31 in | ||
