Product Details

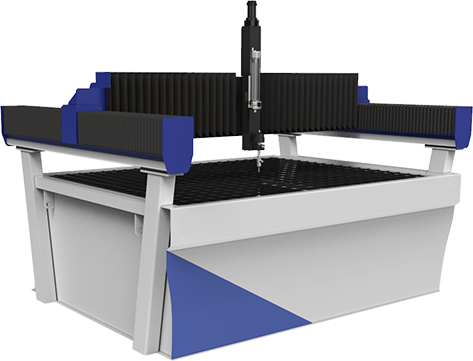

The SLD-510 line of waterjets was custom-engineered to be stronger, faster, and more accurate than its predecessors. The SLD-510 accomplishes all of these goals while offering greater accessibility and taking up minimal floor space. With a footprint of under 70 ft2, the SLD-510 is a consolidated waterjet that doesn’t compromise any aspect of performance.
The SLD-510 line of waterjets was custom-engineered to be stronger, faster, and more accurate than its predecessors. The SLD-510 accomplishes all of these goals while offering greater accessibility and taking up minimal floor space. With a footprint of under 70 ft2, the SLD-510 is a consolidated waterjet that doesn’t compromise any aspect of performance.
Parameters
| Footprint | 7.5' x 9' |
| One Carriage X-Y Cutting Area | 60" x 60" |
| Z-Axis Travel | 12" |
| Software | MOVE, WARDCAM |
| Power Requirements (Gantry Only) | 230V 30 amps, Three Phase |
| Air Requirements | 80 psi, 2 cfm |
| Max Number of Z-Carriages | 2 |
| Bulk Feed Hopper | SmartFeed 400/ Axxiom 1000lb Hopper |
| Drive Mechanism | Ballscrew in all Axes |
| Linear Positional Accuracy | ±0.003" per 3ft. per axis |
| Repeatability | ± 0.001" per axis |
| Speed | 0.01 in/min - 900 in/min |
