Product Details
The space saving 19-inch conception makes the integration of the laser easier for plant constructors thereby qualifying it as a standard industrial tool. Whether in a classical control cabinet, a processing station or underneath the conveyor belts of an interlinked production plant, the innovative design makes it possible to integrate the HLD-198 diode laser in any production area. It requires no additional space and is thus perfectly suitable for OEM applications.
Compact
The space saving 19-inch conception makes the integration of the laser easier for plant constructors thereby qualifying it as a standard industrial tool. Whether in a classical control cabinet, a processing station or underneath the conveyor belts of an interlinked production plant, the innovative design makes it possible to integrate the HLD-198 diode laser in any production area. It requires no additional space and is thus perfectly suitable for OEM applications.
Multi-Kilowatt Power for 19" Rack Mount Module

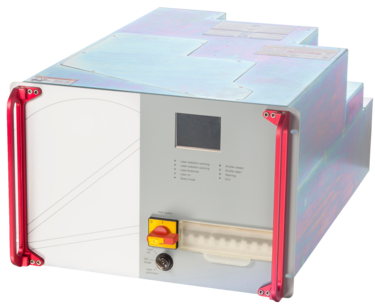

The system design of the fiber-coupled OEM modules of the HLD-198 series is consequently focused on compactness, reliability and ease of integration. The HLD-198 is a 19-inch rack mounted laser, the size of a PC. It includes the diode stacks, a fiber-coupling unit, the power supply, cooling as well as microelectronics used to monitor and control the laser.
Powerful
With an increase in performance of the product family HLD-198 in the 7 RU system, Piptox again sets the standard for compact high power diode lasers. Further development of the HLD-198 technology makes new applications with laser power of 8 kW possible. The beam quality of the fiber-coupled HLD-198 diode laser is comparable to that of a lamp-pumped solid-state laser but with ten times the higher socket output efficiency at a fraction of the size. This user orientated product offers a very simple handling due to the functional standardized signal interface.
Reliable
The HLD-198 module is based on the proven and continuously-developed Piptox diode technology. Today it is used worldwide in many application areas and is characterized by high reliability and system stability. Therefore Piptox diode lasers are offered with a five-year warranty on laser diodes. This period may be extended on request.
User-Friendly
The main element of the HLD-198's product philosophy is user friendliness. The miniaturization of the laser system leads to a clear reduction in investment and operation costs. HLD-198 diode lasers have a great potential to be a substitute not only for existing laser applications but also for conventional methods, e.g. welding, repair welding or heat treatment.
Technical Advantages
Up to 10 kW in a 19" rack mount housing
5-year warranty for laser diodes
Beam quality comparable with Nd:YAG solid-state lasers
Ideal for welding, hardening as well as mobile repair welding
Easiest integration in laser plants
Parameters
| Max. Output Power | 1,500 W | 3,000 W | 4,000 W | 6,000 W | 10,000 W | |
|---|---|---|---|---|---|---|
| Beam quality | 20 mm.mrad | 30 mm.mrad | 40 mm.mrad | 60 mm.mrad | 100 mm.mrad | |
| Other laser powers and process adapted beam qualities available | ||||||
| Fiber optic cables | 400 µm[NA 0.1] | 600 µm[NA 0.1] | 400 µm[NA 0.2] | 600 µm[NA 0.2] | 1.000 µm[NA 0.2] | |
| Fiber lengths | 10m, 20m, 30m, 50m, 100m, other lengths on request | |||||
| Performance stability | < ± 2% over 2 hours | |||||
| Wavelength range | 900 nm to 1,080 nm | |||||
| HLD-198-5 | Weight approx. 50 kg, dimensions: 19 inch rack mount 5U (220 mm), 636 mm deep | |||||
| HLD-198-7 | Weight approx. 110 kg, dimensions: 19 inch rack mount, 7U (312 mm), 766 mm deep | |||||
