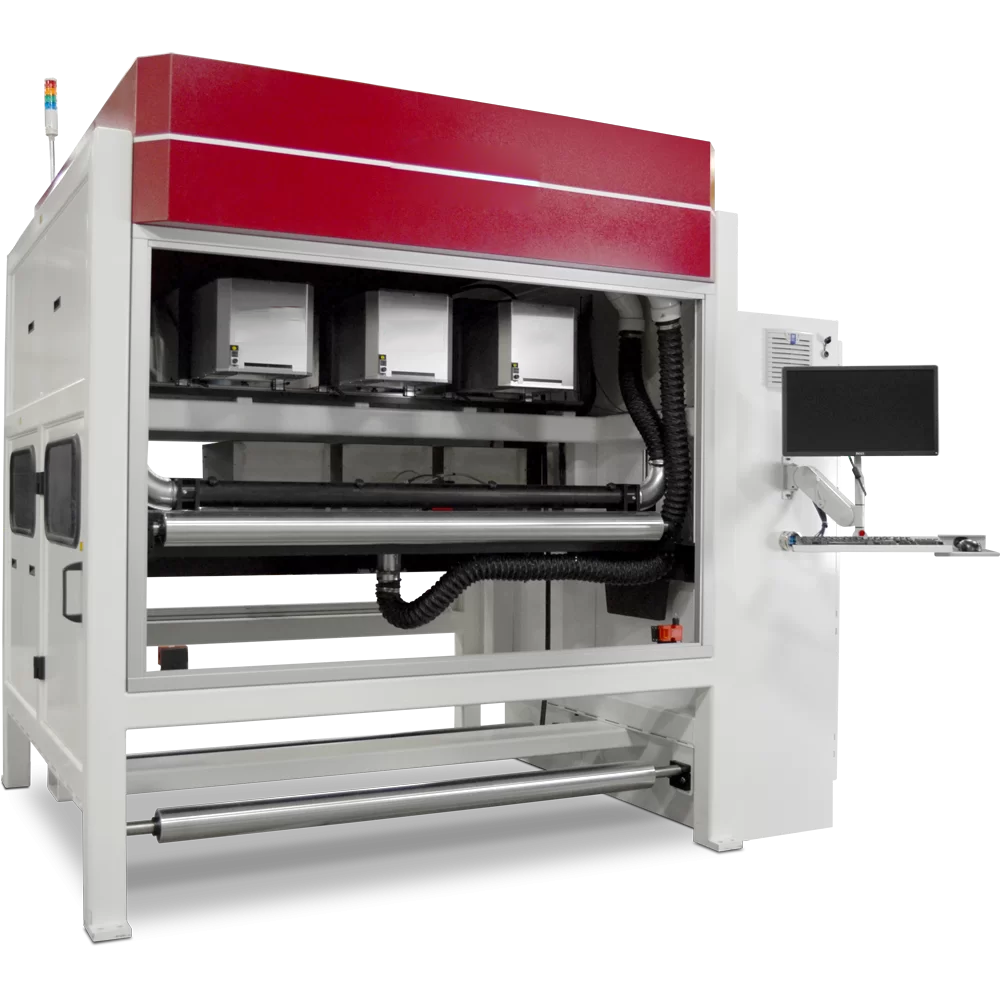

Piptox HVA-200 power control automatically adjusts the laser power "on-the-fly" based on the movement of the beams. This technology is essential to the quality and consistency of cross web processing.
Piptox HVA-200 power control automatically adjusts the laser power "on-the-fly" based on the movement of the beams. This technology is essential to the quality and consistency of cross web processing.
This series was designed to process shapes on-the-fly and continuous or intermittent scoring for easy-open packages including accommodating resealable or zipper features.
Applications
● Cross Web Scoring - Straight line, controlled-depth scoring in the cross web direction (for easy-open features)
● Shape Scoring - for promotional items, pour spouts and product tampering
● Microwave Venting - Controlled depth and/or through-cut line segments (dashes/slits)
Features
Non-Contact Processing
Eliminates inconsistencies of knives and mechanical perforators
Customizable Equipment
Laser systems operate as stand alone units or can be integrated into an existing production line
Eyespot Registration
Registers eyespots before processing and aligns process pattern and process spacing
Various Materials and Thicknesses
Process a variety of packaging materials ranging in thickness to 12 mil
Ramp Up – Ramp Down Control
Eliminates scrap caused by overpowering of material at slower than normal processing speeds
Closed Loop Power Control
Precision control of laser energy, unique to Piptox
Superior Score Quality
Consistent depth and uniformity of scoreline. Repeatable strength and tear quality
Quick Setup and Pattern Change
Easy to use Windows® based software enables adjustable score depths and perforation hole size and spacing
Parameters
| Vertical | Horizontal | |
|---|---|---|
| Lasers | 1 - 8 | 1 - 4 |
| Output Heads | 1 - 8 | 1 - 4 |
| Cross Axis Beam Adjustment Rows | 2 Rows (4 output heads per row maximum) | 1 Row (4 output heads per row maximum) |
| Laser Power | 100 - 160 Watts (Other laser sizes available per request) | 200 - 1,000 Watts (Other laser sizes available per request) |
| System Footprint | Cross Web: 3048 mm (120 in.) | Cross Web: 3150 mm (124 in.) |
| Web Direction: 2134 mm (84 in.) | Web Direction: 2134 mm (84 in.) | |
| Height: 2800 mm (110 in.) | Height: 2440 mm (96 in.) | |
| Web Width | Standard 1600 mm (63 in.) | |
| Laser Wavelengths | 9.3 µm, 10.2 µm or 10.6 µm | |
| Scan Head | 3-Axis | |
| AcuBeam™ Software | Included | |
| Patented HVA-200 Control | Adjustment of laser power "on-the-fly" based on beam movements | |
| Safety Enclosure | Class 1 | |
| Lower Web Stabilization Support | Included | |
| Dual-Level Work Platform | For perforating and venting applications (Optional) | |
Venting Speed (short slit pattern) | Up to 457 m/min (1,500 ft./min) | |
| Scoring Speed | Up to 457 m/min (1,500 ft./min) | |
| Perforating Speed | Up to 457 m/min (1,500 ft./min) | |
| Perforation Hole Size | 130 µm (0.005 in.) and greater | |
| Perforating Precision | 1:1.4 Hole aspect ratio | |
| Power Requirements | Controller: 208VAC, 3PH, 60Hz | |
| Chiller: 460VAC, 3PH, 60Hz | ||
