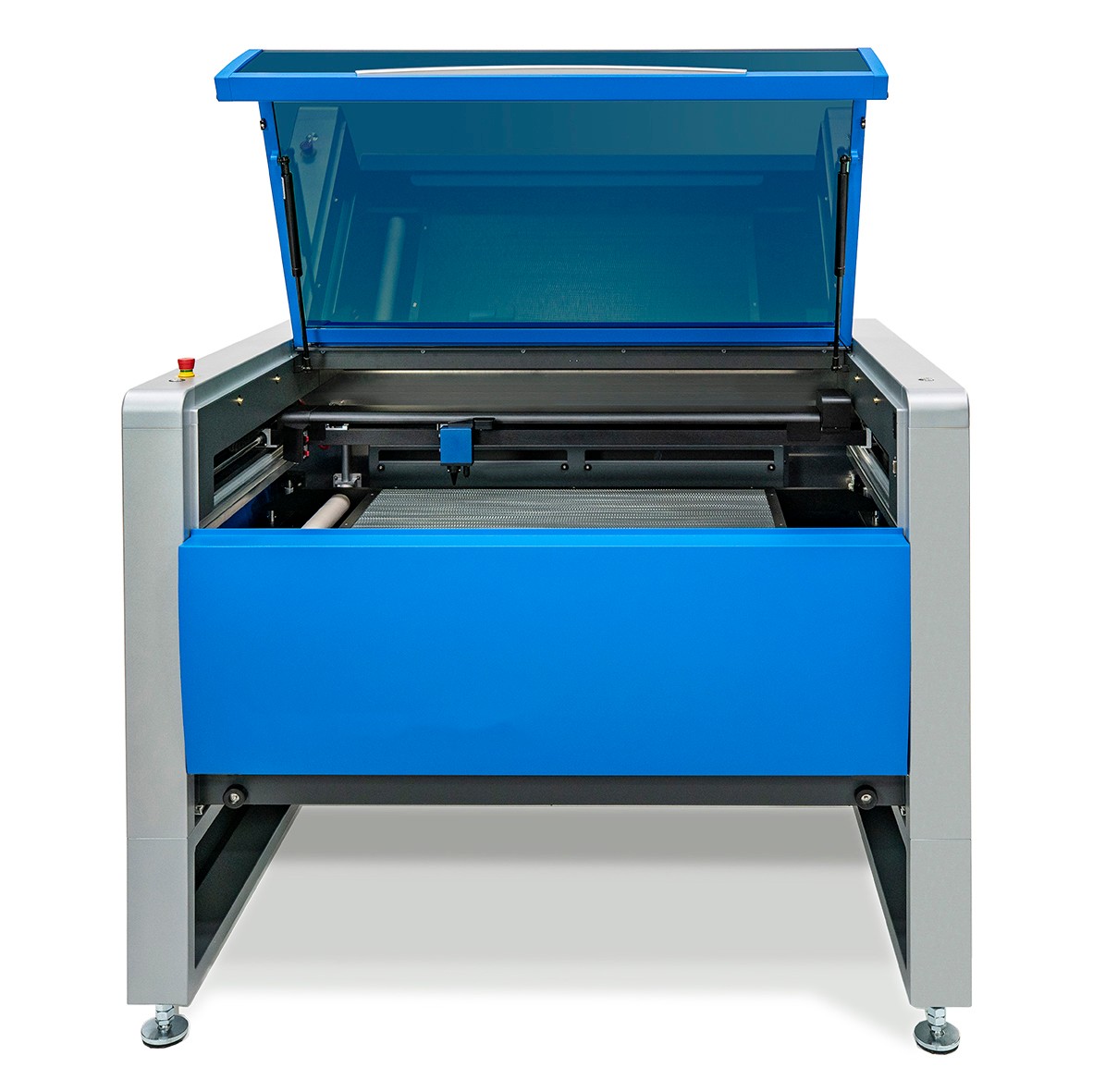

The MTY-700 offers a 32 in x 24 in (813 mm x 610 mm) material processing area. It can be configured in a CO2 only configuration (10.6 or 9.3 µm) or a multiple wavelength configuration (CO2 and fiber). A maximum of 150 watts of laser power is supported in a CO2 only configuration. A maximum of 150 watts CO2 and 50 watts fiber is supported in a multiple wavelength configuration.
Material processing area of 32 x 24 in. (813 mm x 610 mm)
Supports material thickness up to 12 in. (305 mm)
Maximum power configuration is 150 watts CO2 and 50 watts fiber
Supports two lasers - up to (2) CO2 laser sources (10-75 watts) or up to (1) CO2 laser source (10-150 watts) and up to (1) permanently mounted fiber laser source
Patented Controllable Laser Power Density Optics
Patented Multi-Wave HybridTM Technology
Precision Material Independent Autofocus
Intelligent Materials Database
Multi-Camera Vision and Registration available
21” (533 mm) Touch Screen Control Panel available
Patented SuperSpeedTM technology available
Fire Suppression available
UAC 4000 Air Filtration availabl
| Material Processing Envelope (X,Y,Z) | 32 x 24 x 12 in. (813 x 610 x 305 mm) |
Maximum Effective Raster Material Processing Speed (in SuperSpeedTM configuration) | >200 in./sec (5080 mm/sec) |
| Multiple Laser Support | Up to 2 lasers Sources can be used individually or in combination |
| Laser Sources Available | 10.6 μm CO2: 10, 30, 40, 50, 60, 75 and 150 watt laser sources 9.3 μm CO2: 10, 30, 50 and 75 watt laser sources 1.06 μm Fiber: 50 watt laser source |
| Laser Sources Combinations | Up to (2) CO2 laser sources or up to (1) CO2 laser sources (10-150 watts) and up to (1) permanently mounted fiber laser source Supports Rapid ReconfigurationTM of CO2 lasers |
| Maximum Laser Power | 150 watts CO2 , 50 watts Fiber |
| System External Dimensions | Width: 55.00 in. (1397 mm) without Control Panel 59.31 in. (1506 mm) with Control Panel folded 83.75 in. (2172 mm) with Control Panel extended Depth: 46.32 in. (1177 mm) Height: 48.00 in. (1219 mm) to top of enclosure e-stop |
| Weight | 400 lbs. (181 Kg) Weight is approximate and varies with laser source selections |
| Power Requirements | 220V-240V/16A |
| Exhaust Requirements | Intelligent Air Filtration (UAC 4000) or External Exhaust Blower Capable of >700 CFM at 6 in. WG Static Pressure (1190 m3/hr. at 1.5 kPa) 6 in. (152mm) Exhaust Port |
| Computer Requirements | Minimum: Intel i3 processor (or equivalent) with at least 8 GB of memory, Windows 10/11 operating system, and connection to laser system with USB cable. Computer is not required if configured with available 21” Touch Screen Control Panel |
| Laser Safety Classification | Class 1 for material processing lasers Class 2 overall due to red laser pointer Can convert to Class 4 with optional Class 4 module |
