Product Details
Industrial independent cabinet, Separation of strong and weak electricity. Use industrial steel welding machine under heat treatment, ensure that the machine body will not be deformation after long time using, more durable. The 5-Axis gantry CNC milling machine center, including milling, drilling, taping and other processes, one time complete, improves the assembly accuracy, ensure the operating accuracy and stability of the equipment, 3 axis adopt Taiwan Lapping linear rail, running smoothly, wear-resistant and dust-proof. X/Y axis adopts grinding rack, equip with high precision reducer, Z axis adopt grinding screw. X/Y/Z axis adopt HCFA/INOVANCE AC servo driver system.
Industrial independent cabinet, Separation of strong and weak electricity. Use industrial steel welding machine under heat treatment, ensure that the machine body will not be deformation after long time using, more durable. The 5-Axis gantry CNC milling machine center, including milling, drilling, taping and other processes, one time complete, improves the assembly accuracy, ensure the operating accuracy and stability of the equipment, 3 axis adopt Taiwan Lapping linear rail, running smoothly, wear-resistant and dust-proof. X/Y axis adopts grinding rack, equip with high precision reducer, Z axis adopt grinding screw. X/Y/Z axis adopt HCFA/INOVANCE AC servo driver system. Equipment with professional CYPCUT/Weihong /Raytools CNC Laser control system, well-known WSX/Raytools laser cutting head. high sensitivity optical lens, small spot, fine cutting lines, better processing quality and high work efficiency. Optical fiber transmission, flexible processing, can achieve equal quality cutting
Features:
CYPCUT/ Weihong /Raytools CNC Laser control system;
Industrial independent cabinet;
Taiwan Lapping linear rail;
Leadrack rack;
X/Y/Z axis adopt HCFA/INOVANCE AC servo driver system;
CYPCUT/ Weihong /Raytools CNC Laser control system;
WSX /Raytools laser cutting head;
Laser Type: Fiber laser;
Laser Power: 6000W;
Min Route width :0.1mm;
Reposition accuracy: +0.05mm;
Machine Details
| Laser Type | Fiber Laser |
| Cutting Speed | 0-168m/min |
| Cooling Mode | WATER COOLING |
| Control System Brand | Cypcut |
| Applicable Material | Metal, aluminum |
| Condition | New |
| Cutting Area | 1500*3000mm/min |
| Place of Origin | Anhui, China |
| Laser Source Brand | RAYCUS |
| Weight (KG) | 3500 KG |
| Key Selling Points | Multifunctional |
| Warranty | 1 Year |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Home Use, Construction works , Energy & Mining |
| Mode of Operation | continuous wave |
| Configuration | gantry type |
| Products handled | Sheet Metal and Tube |
| Feature | Automated Loading |
| Application | LASER CUTTING |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
| Cutting Thickness | Depand on material |
| CNC or Not | Yes |
| Control Software | WEIHONG NC/CYPCUT control system |
| Brand Name | Piptox |
| Laser Head Brand | Raytools |
| Servo Motor Brand | Schneider |
| Guiderail Brand | THK |
| Optical Lens Brand | Wavelength |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 2 years |
| Core Components | Motor, Bearing, Engine, laser source, laser cutting head, control system |

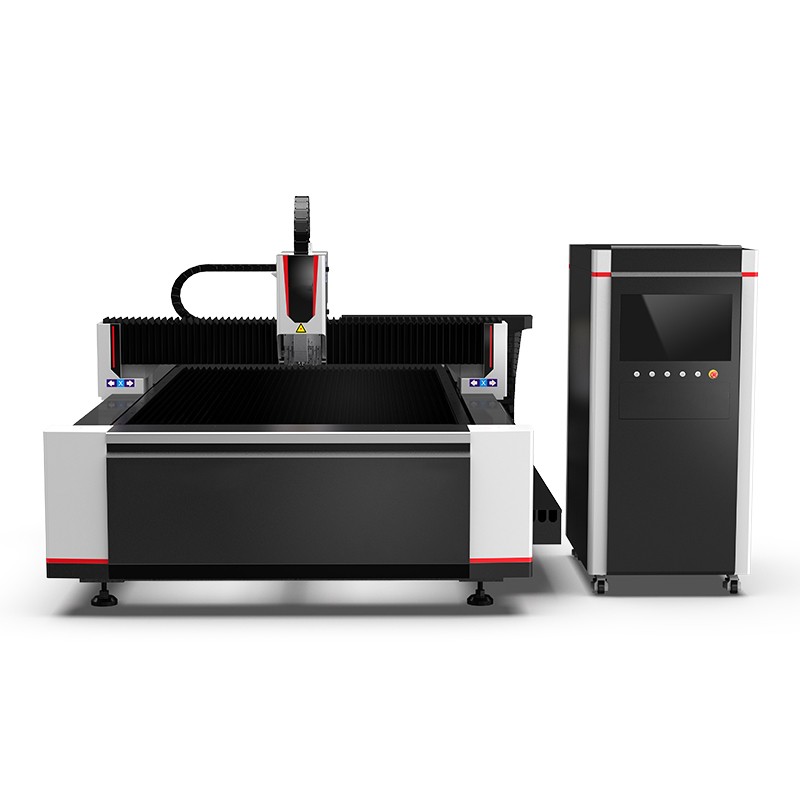

| Product name | 6000W Fiber Laser Metal Cutting Machine |
| Linear rail | Japanese THK |
| Laser head | WSX/Raytools |
| Cutting material | CS/SS/BEASS/ALUMINUM |
| reducer | Japanese shimpo |
| Laser source | RAYCUS/IPG SOURCE |
| Laser power | 6000W |
| Working area | 1500* 3000mm |
| After Warranty Service | Online support |
| Max cutting speed | 169m/min |
